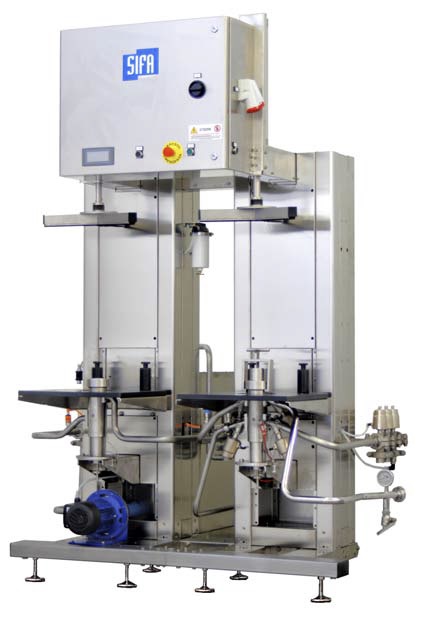

MASTERKEGS COMPACT MB 11S

MASTERKEGS COMPACT MB 11S


Product characteristics:



Keg-filling range:
10-50L
Filling heads: 1
Liter-counter accuracy:
±20%
Average filling accuracy: ±1.5%
Resistance to sanitization:

resistant to chemicals, water and steam



Production

  • Max. hourly keg production 20/30 l: 36
  • Max. hourly keg production 50 l: 32

Construction materials

  • Construction Material: Aisi 304 L stainless steel
  • Material in contact with the liquid: Aisi 304/316 L stainless steel & EPDM/PTFE/Silicone

Dimensions and weight

  • Height of work table (mm): 850 - 870
  • Dimensions WxDxH (mm): 1600x1600x2350
  • Weight (kg): 630

Electricity

  • Filler’s installed power (kW): 1,5
  • Power of the resistances if present  (kW): 4,5
  • Number of phases: 3/PE
  • Voltage (Volt AC): 400
  • Frequency (Hz): 50

Consumption

  • Max. product flow rate (l/h): 3600
  • Product Pressure (bar): 2-2,5
  • Air pressure (bar): 6
  • Air consumption (N l/min): 416
  • Nitrogen / CO2 pressure (bar): 6
  • Nitrogen / CO2 consumption (l/h): 134
  • Water pressure (bar): 3
  • Water flow rate (liters/hour): 3600
  • Heating steam (kg/h): 24
  • Sterilization steam (kg/h): 18

For additional information about product, please contact Customer Service: info@remove-this.keg-exchange.com
